Number:
8215123916
Name:

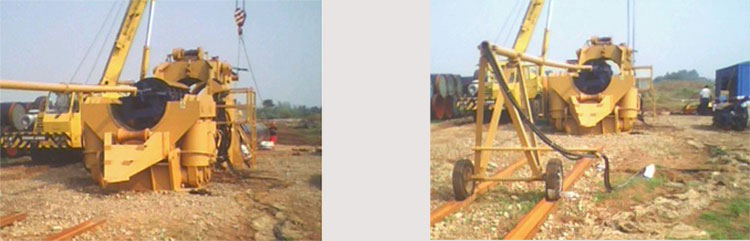

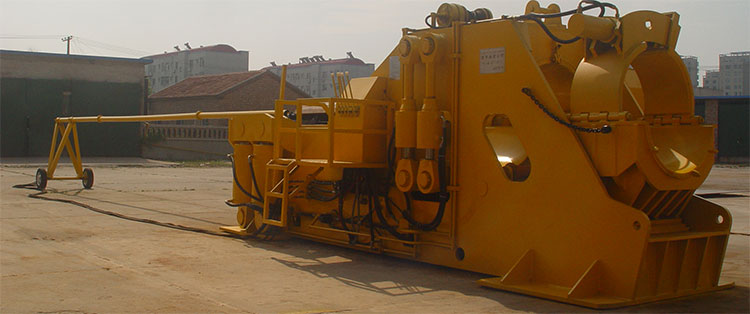

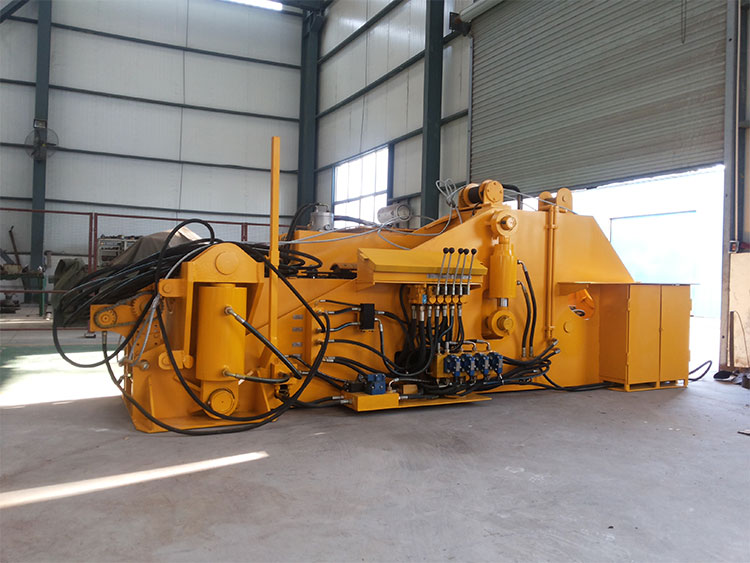

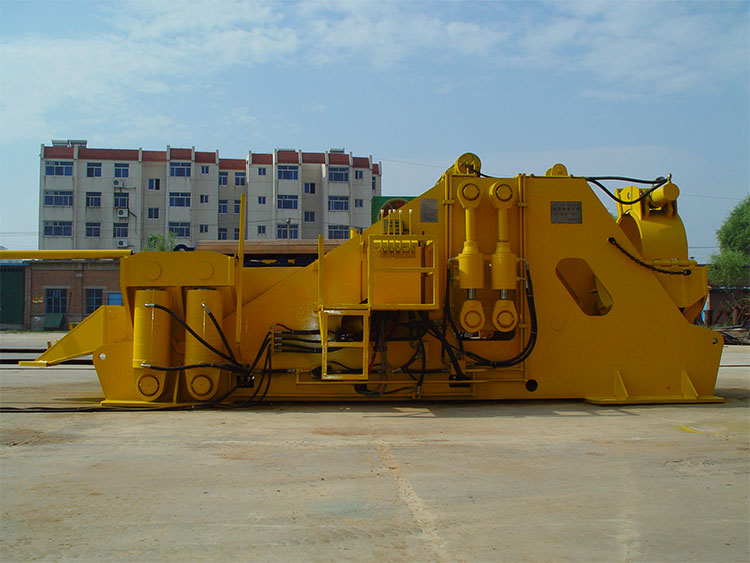

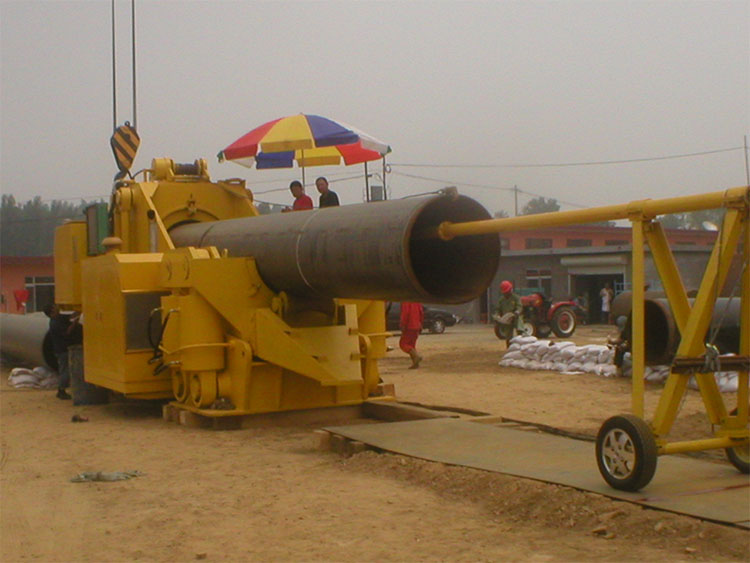

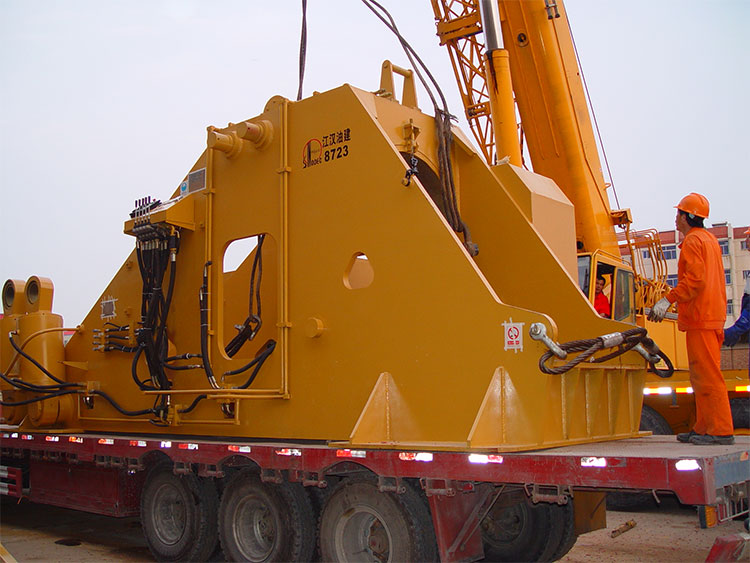

cold bending machine
Specification:
Remark:




8"-18"弯管机弯制性能参见下表

Concerning bending performance refer to the following data sheet.

钢管直径

PIPE O.D.

不同钢级最大壁厚

MAXIMUM WALL THICKNESS BY STEEL GRADE

推荐弯制表

RECOMMENDED BEND

X60

X65

X70

曲率半径Radius

每步弯制度数

Degree for each step

最大弯制角度

Max degree bend

[mm]   [in]

[mm]  [in]

[mm]  [in]

[mm]  [in]

[m]

(°)(joint

(°)(joint

219    8"

45  1.772

43  1.693

40  1.575

8.76

1.8°

40°

8"-18"之间任何一种规格的管材均可加工,壁厚和材质均在此表的上下限之间

Any pipe between 8"-18" can be processed. Material and wall thickness are all in lower and upper limit shown above.

457   18"

21  0.827

17.5 0.689

14.6 0.575

22.8

0.8°

17°

本表中的壁厚不是API标准的,但是根据弯管机的性能计算得出

Note: pipe w/Ts in this table are not API standard, but they are calculated according to pipe bend machine performances







16"-30"弯管机弯制性能参见下表

Refer to the following data sheet for performances of 16"-30" pipe bender

钢管直径

PIPE O.D.

不同钢级最大壁厚

MAXIMUM WALL THICKNESS BY STEEL GRADE

推荐弯制表

RECOMMENDED BEND

X60

X65

X70

曲率半径Radius

每步弯制度数

Degree for each step

最大弯制角度

Max bend degree

[mm]   [in]

[mm]  [in]

[mm]  [in]

[mm]  [in]

[m]

(°)(joint

(°)(joint

406   16"

50  1.97

48   1.89

45   1.77

16.24

1°

20°

16"-30"之间任何一种规格的管材均可加工,壁厚和材质均在此表的上下限之间

Any pipe between 16"-30" can be processed. Material and wall thickness are all in lower and upper limit shown above.

762   30"

22.5  0.886

21  0.827

17.5  0.689

30.5

0.7

14

本表中的壁厚不是API标准的,但是根据弯管机的性能计算得出

Note: pipe w/Ts in this table are not API standard, but they are calculated according to performances of pipe bender.







16”-34”冷弯管机弯制性能表

Concerning bending performance refer to the following data sheet.

管径

PIPE O.D.

不同钢级最大壁厚

MAXIMUM WALL THICKNESS BY STEEL GRADE

推荐弯制表

RECOMMENDED BEND

X50

X65

X70

曲率半径

Radius

每步弯制度数

Degree for each step

最大弯制角度

Max degree bend

[mm] [in]

[mm]  [in]

[mm]  [in]

[mm]  [in]

[m]

 [°]joint

 [°]joint

406  16

50  1.97

48   1.89

45  1.77

16.24

1°

20°

16"-34"之间任何一种规格的管材均可加工,壁厚和材质均在此表的上下限之间

Any pipe between 16"-34" can be processed. Material and wall thickness are all in lower and upper limit shown above.

864  34

146  0.575

140 0.551

124  0.488

3125

055

127

本表中的壁厚不是API标准的,但是根据弯管机的性能计算得出

Note: pipe w/Ts in this table are not API standard, but they are calculated according to pipe bend machine performances



32”-42”弯管机弯制性能表

管径

PIPE O.D.

不同钢级最大壁厚

MAXIMUM WALL THICKNESS BY STEEL GRADE

推荐弯制表

 RECOMMENDED BEND

X65

X70

X80

曲率半径

Radius

每步弯制度数

Degree for each step

最大弯制角度

Max degree bend

[mm]  [in]

[mm]  [in]

[mm]  [in]

[mm]  [in]

 [m]

(°)(joint

(°)(joint

812.8   32

43.5  1.713

41.6  1.638

41.0  1.614

26.50

0.50

16.00

863.6   34

43.5  1.713

41.6  1.638

41.0  1.614

27.80

0.50

15.30

914.4   36

43.5  1.711

41.6  1.639

36.3  1.428

30.18

0.50

14.50

965.2   38

38.1  1.498

36.5  1.437

31.9  1.256

31.70

0.50

13.75

1016.0  40

33.7  1.327

32.3  1.273

28.4  1.116

35.05

0.50

12.50

1066.8  42

30.1  1.185

28.9  1.139

25.4  1.000

35.05

0.50

12.50

本表中的壁厚不是API标准的,但是根据弯管机的性能计算得出

Note: pipe w/Ts in this table are not API standard, but they are calculated according to pipe bend machine performances



40"-50"弯管机弯制性能参见下表

Concerning bending performance refer to the following data sheet.

管径

PIPE

O.D.

不同钢级最大壁厚

MAXIMUM WALL THICKNESS BY STEEL GRADE

推荐弯制表

RECOMMENDED BEND

X65

X70

X80

曲率半径

Radius

每步弯制度数

Degree for each step

最大弯制角度

Max degree bend

[mm] [in]

[mm]   [in]

[mm]   [in]

[mm]   [in]

[m]

(°)(joint

(°)(joint

1016  40"

43.5  1.711

41.6  1.639

36.3  1.428

30.18

0.50°

10°

40"-48"之间任何一种规格的管材均可加工,壁厚和材质均在此表的上下限之间

Any pipe between 40"-48" can be processed. Material and wall thickness are all in lower and upper limit shown above.

1219  48"

33.7  1.327

32.3  1.273

30  1.181

48.76

0.42

8.4

1270  50"

30.1  1.185

28.9  1.139

25.4  1.000

50.8

0.40

8.0

本表中的壁厚不是API标准的,但是根据弯管机的性能计算得出

Note: pipe w/Ts in this table are not API standard, but they are calculated according to pipe bend machine performances

提示:我公司可以根据客户的需求,定做特定的冷弯管机产品

  Note:we can make special cold bender according to customer’s order
